EC Series

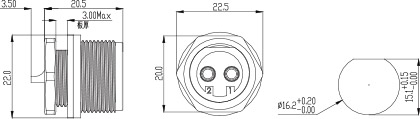

(BF) Bulkhead Male Connector
| Contacts | Part No | Rated Voltage | Rated Current | Rated Impulse Voltage |
| 2 | EC02681-1123-BF | 250V | 10A | 2500V |
| 2 | EC02681-1124-BF | 250V | 15A | 2500V |
| 3 | EC03681-1123-BF | 250V | 10A | 2500V |
| 3 | EC03681-1124-BF | 250V | 15A | 2500V |
| 4 | EC04681-1114-BF | 125V | 15A | 1500V |
| 4 | EC04681-1123-BF | 250V | 10A | 2500V |
| 5 | EC05681-1113-BF | 125V | 10A | 1500V |
| 6 | EC06681-1112-BF | 125V | 5A | 1500V |
| 8 | EC08681-1112-BF | 125V | 5A | 1500V |
Applicable Condition And Product Materials
| In Conformity To The Standards | EN61984 |
| Protection Level | IP68 |
| Mating Cycles | ≥500 |
| Contact Attachment | Soldering |
| Contact Resistance | ≤10mΩ |
| Environmental Temperature | -40℃ ~ +85℃ |
| Pollution Degree | 2 |
| Overvoltage Category | Ⅱ |
| Material Level | Ⅱ |
| Plastic Material | PA |
| Contact / Plating | Copper Alloy / Gold Plating |
| O-Ring | Silicone Rubber |
